Description
Pallet Spec or View full product spec PDF
The pallet has a reticular structure with excellent mechanical characteristics and a perimetric groove for housing the sleeve.
| Product code / Ref: | BCLP400 light |
| Size: | (L) 400 mm (W) 600 mm (H) 133 mm |
| Weight: | 1,20 kg |
| Material: | PP |
| Colour/s: | Black |
| Dynamic load: | ?kg |
| Static load: | ?kg |
| Racking load: | ?kg |
| Perimetrical groove: | Yes |
| Packing per stack: | 168 |
| Other info: | Runners (optional) |
Sleeve spec
Made with a rimmed contour to prevent injuries and on request can be fitted to the pallet and the lid with 8 hooks.
| Product code / Ref: | BCLS400 |
| Size: | (L) 400 mm (W) 600 mm |
| Internal dimensions: | (L) 379 mm (W) 579 mm |
| Belt height: | Minimum 390 mm / maximum 1198 mm |
| Thickness: | From minimum 5mm to maximum 10 mm |
| Thickness: | Minimum 8.5 mm / maximum 10 mm |
| Density: | Minimum 1.5kg/m2 to maximum 3kg/m2 |
| Material: | PP |
| Colour: | On demand according to quantities (minimum 1000kg) |
| Other info: | Foldable door on one or two sides (optional) Option to fix belt to pallet and lid with 8 hooks Rimmed contour Foldable |
Lid spec
The upper part of the lid is made with a special structure to allow the stacking of the boxes.
| Product code / Ref: | BCLL450 |
| Size: | (L) 400 mm (W) 600 mm |
| Weight: | 0,66 kg |
| Material: | PP |
| Colour/s: | Anthracite grey |
| Other info: | Upper part of lid made with special structure to allow stacking of boxes Pull rings (optional) |

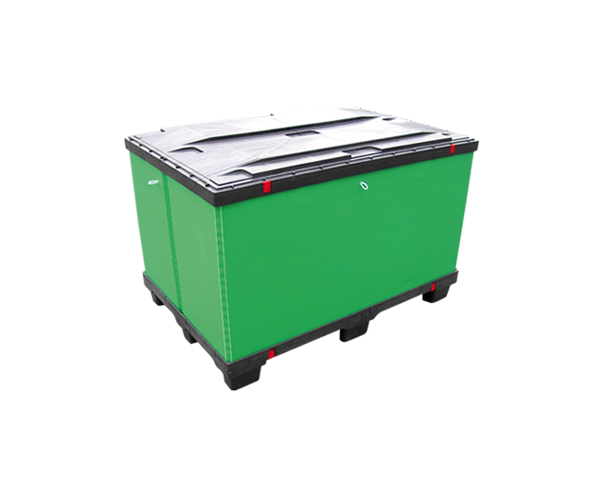

Quarter Euro, light build
400 × 600 mm is a quarter of a Euro pallet: four fit a 1200 × 800 position exactly. This is the light build of the two options at this size.
Light is the right choice when the contents are not heavy and the box is handled manually many times a day. Every gram of packaging is weight an operator lifts repeatedly, and at this footprint the box is almost always moved by hand rather than by fork.
When to choose the reinforced version instead
If the contents are dense, if boxes are stacked several high when full, or if the circuit is rough on packaging, the BCLP401 reinforced will last longer. The light build is cheaper and lighter; the reinforced build survives more.
The Lite Box principle at small sizes
Base, sleeve and lid separate, and the sleeve collapses onto the base when empty. At a quarter-Euro footprint you are usually returning these in quantity, so how flat they pack matters more than at larger sizes.
Larger footprints: 600 × 800, 800 × 1200. See the Lite Box range.
