Description
Pallet Spec or View full product spec PDF

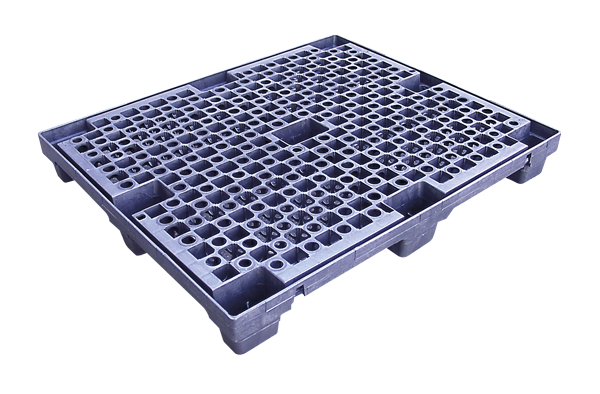

The pallet has a reticular structure with excellent mechanical characteristics and a perimetric groove for housing the sleeve.
| Product code / Ref: | BCLP1200 |
| Size: | (L) 1200 mm (W) 1200 mm (H) 133 mm |
| Weight: | 16 kg |
| Material: | PP |
| Colour/s: | Black |
| Dynamic load: | ?kg |
| Static load: | ?kg |
| Racking load: | – |
| Perimetrical groove: | Yes |
| Packing per stack: | 34 |
| Other info: | Runners (optional) |
Sleeve spec
Made with a rimmed contour to prevent injuries and on request can be fitted to the pallet and the lid with 8 hooks.
| Product code / Ref: | BCLS1200 |
| Size: | (L) 1200 mm (W) 1200 mm |
| Internal dimensions: | (L) 1163 mm (W) 1163 mm |
| Belt height: | Minimum 390 mm / maximum 1198 mm |
| Thickness: | From minimum 5mm to maximum 10 mm |
| Thickness: | Minimum 8.5 mm / maximum 10 mm |
| Density: | Minimum 1.5kg/m2 to maximum 3kg/m2 |
| Material: | PP |
| Colour: | On demand according to quantities (minimum 1000kg) |
| Other info: | Foldable door on one or two sides (optional) Option to fix belt to pallet and lid with 8 hooks Rimmed contour Foldable |
Lid spec
The upper part of the lid is made with a special structure to allow the stacking of the boxes.
| Product code / Ref: | BCLL1250 |
| Size: | (L) 1200 mm (W) 1200 mm |
| Weight: | 10 kg |
| Material: | PP |
| Colour/s: | Anthracite grey |
| Other info: | Upper part of lid made with special structure to allow stacking of boxes Pull rings (optional) |
The square footprint
1200 × 1200 mm is square, and that is the reason to choose it. Square loads — drums, IBC-style containers, square bulk bags, cylindrical goods packed in a square array — overhang a rectangular pallet on two sides, and overhang is what gets caught and damaged in racking and in transit.
It is the largest footprint in the Lite Box range. If your load is rectangular, one of the 1000 × 1200 or 800 × 1200 sizes will use vehicle space better.
Base and sleeve
The pallet base has a reticular structure with good mechanical characteristics and a perimetric groove that houses the sleeve, so the sleeve locates into the base rather than sitting on it.
Handling a square pallet
A square footprint can be picked up from any side, which is genuinely useful in a cell where the load is approached from different directions. The trade is vehicle fill: square pallets rarely tessellate as tightly on a standard trailer bed as 1200 × 800 or 1200 × 1000.
See the Lite Box range, or the Maxi Box for bespoke and oversize footprints.
