Description

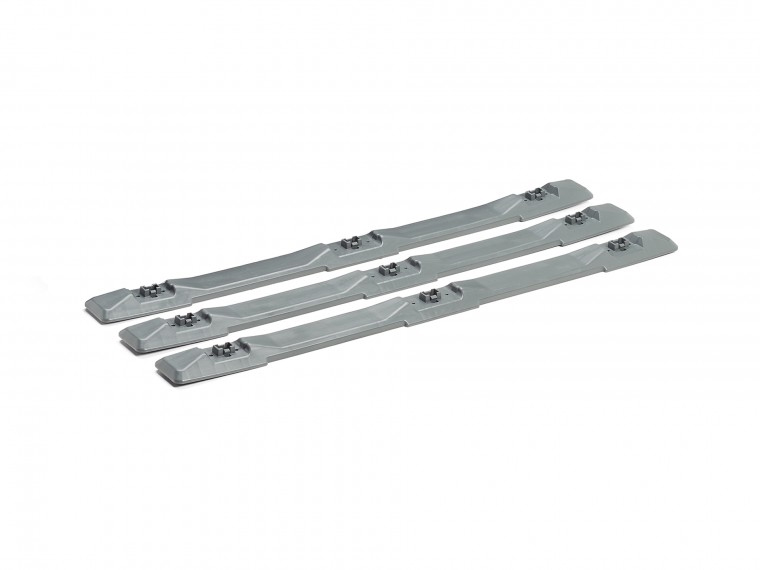

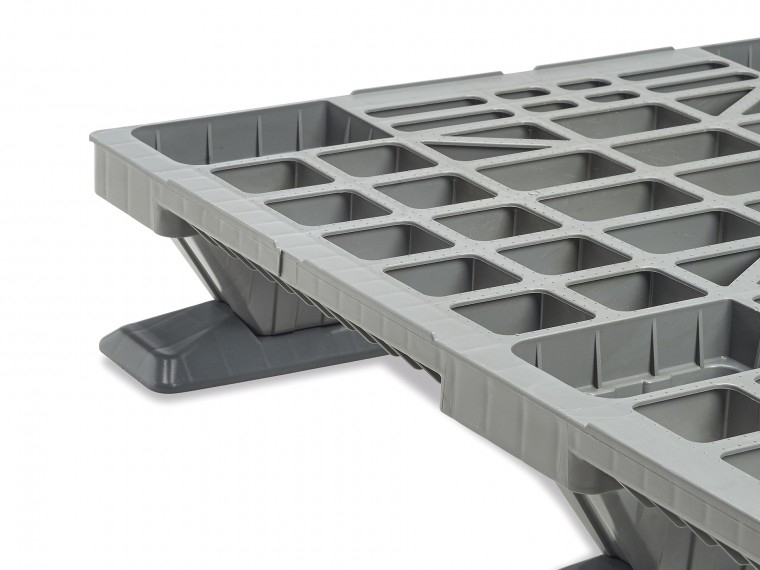

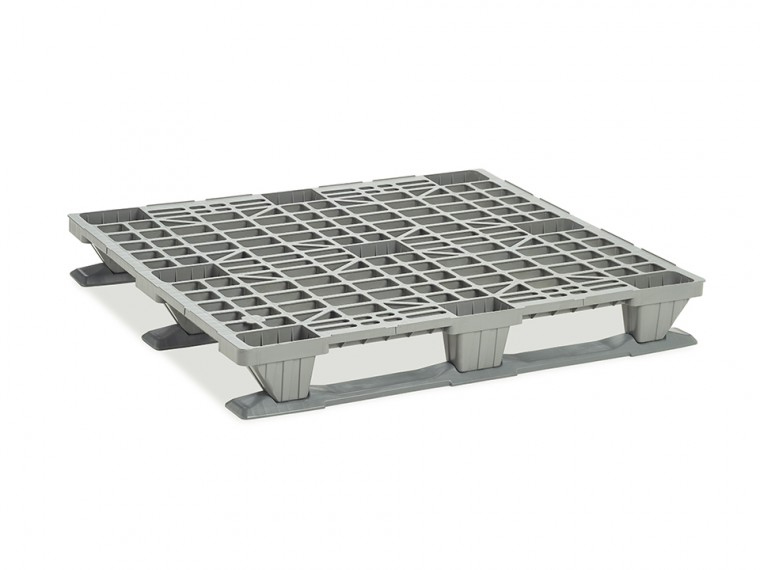

Ideal equipment for loads with lift storage increasing the support surface and avoiding damage to the product of the lower layer. Suitable for automated lines with roller conveyors being the pallet of its dimensions with lighter runners. When the runners are removed, you obtain our Basic 1210-O9 product.
- Special strapping slot
- Anti-impact perimeter
- Anti-slip surface
- Corners prepared for optimum shrinkage
- Inclined Block
| Product code / Ref: | BCNPT1210-LEP1 |
| Size: | (L) 1200 mm (W) 1000 mm (H) 160 mm |
| Weight: | 8.15 kg |
| Material: | PP |
| Colour/s: | Black |
| Dynamic load: | 1000 kg |
| Static load: | 1800 kg |
| Racking load: | 400 kg |
| Retain edge: | |
| Packing per stack: | |
| Other info: |
Protecting the layer underneath
A layer pallet earns its place in one situation: stacked storage where the lower layer would otherwise carry the column on too few contact points. By increasing the support surface between layers it spreads that load and prevents crushing damage to the product below.
The cost of getting this wrong is not the pallet, it is the stock. Bagged goods, drums and non-rigid cases all deform under point loading, and the damage usually shows up at despatch rather than in the racking.
Roller conveyor compatibility
Designed for automated lines with roller conveyors. That places a real constraint on the underside geometry — it has to run consistently rather than catching, because a layer pallet that jams stops the whole line.
Choosing within the range
The BCNPT1210-LEP2 is the other option in this pairing; the difference is in build rather than purpose. If you are handling unit loads rather than protecting layers, you want a standard pallet from the nestable and stackable range instead.
Contact Beecraft with your product, layer weight and stack configuration.
