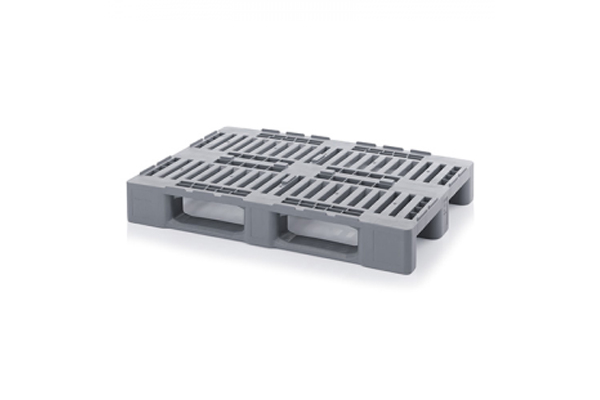

BCH3

Description

Product code / Ref:	BCH3
Size:	(L) 1200 mm   (W) 1000 mm   (H) 152 mm
Weight:	13 kg
Material:	HD-PE
Colour/s:	Silver grey
Dynamic load:	1000 kg
Static load:	3000 kg
Racking load:	300 kg
Retain edge:	Yes
Other info:	3 Bottom skids (not welded)  Available without lip

Reading the numbers

1,000 kg dynamic, 3,000 kg static, 300 kg racking. That racking figure is the one to watch: at 300 kg this pallet is for floor and block stacking, not beam racking. Three bottom skids, 13 kg, HD-PE, silver grey.

Need five skids for better load spread on conveyors? See the BCH3 5. Need a genuine racking rating? The BCIH1 is rated to 1,000 kg racked.

The lightest pallet in the hygienic range

13 kg on a 1200 × 1000 mm footprint, in HD-PE, silver grey. That makes it the lightest of the BCH pallets, and weight matters more in hygienic operations than people expect — these pallets are moved manually into and out of wash lines far more often than a general warehouse pallet is handled by hand.

Reading 1,000 / 3,000 / 300

1,000 kg dynamic while moving, 3,000 kg static stacked on the floor, 300 kg in racking. The racking figure is the constraint: this is a floor-stacking pallet.

Operations get caught out by this. A pallet rated 3,000 kg static looks strong, and it is — sitting on concrete. Spanning two rack beams is a completely different load case, and 300 kg is the honest answer for an unreinforced hygienic pallet.

Three skids

Three bottom skids for forks and pallet trucks. The BCH3 5 is the five-skid version at 14 kg, for conveyors and chain transfer.

If you need racking

The reinforced PRO series or the virgin HD-PE BCIH1 at 1,000 kg racked.

See the hygienic food grade range.
