Description
Pallet Spec or View full product spec PDF

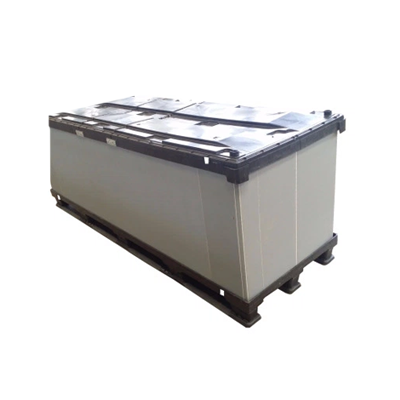

These maxi box pallets are made from Recycled PP, anthracite and are cut and joined through metal parts.
The lids are made from recycled PP, anthracite and are cut and joined through metal plates and rivets.
The extruded PP sleeves are produced as usual to the requested height.
All boxes are made to order – please enquire using the orange link above stating your specification requirements.
The sleeve is made with a rimmed contour to prevent injuries and on request can be fitted to the pallet and the lid with 8 hooks.
The upper part of the lid is made with a special structure to allow the stacking of the box.
| Product code / Ref: | BCMXP2000 |
| External Size: | (L) 2000 (W) 800 (H) 1200 |
| Internal Size: | (L) 1940 (W) 740 (H) 990 |
| Weight: | 58 kg |
| Load capacity (single box): | 1000 kg/box |
| Load capacity (overlapping boxes): | 1000 kg |
| Volume: | 1420 ltrs |
| Height of collapsed box: | 220 mm |
| Volume’s reduction: | 1:5,5 |
| Stackable (dynamic): | 1 1 |
| Packing per stack: | 1 1 |
| Other info: | Runners (optional) |
Two metres of length
800 × 2000 mm exists for loads that are simply long: profiles, tubes, extrusions, linear assemblies. At two metres you are past what any standard pallet footprint handles without overhang, and overhang on a two-metre load is not a minor risk — it is the part that catches on racking, on doorways and on other loads.
How it is built
Recycled PP in anthracite, cut and joined through metal parts; lids in the same material joined through metal plates and rivets. Metal fixings rather than a single moulding are what let a container this long stay rigid loaded and fold flat empty.
Vehicle fit
At two metres, check the vehicle before the racking. A standard trailer bed takes 2000 mm across its width comfortably but the loading pattern changes — you are usually loading these longitudinally rather than in the usual two-across pattern, which affects how many go on a vehicle and how they are secured.
Longer and shorter
Shorter: 800 × 1750. Longer: 800 × 2400. Wider: 1000 × 1540.
The Maxi Box system is fully bespoke, so if none of the stock sizes fits, send us your load dimensions. See the Maxi Box range.
