Description
| Product code / Ref: | Cargo 600 FD |
| Size: | (L) 1200 mm (W) 800 mm (H) 850 mm |
| Internal dimensions: | (L) 1130 mm (W) 725 mm (H) 690 mm |
| Folding door size: | (L) 1000 mm (W) 35 mm (H) 335 mm |
| Material: | PP & RPP |
| Colour: | Grey |
| Maximum capacity: | 550 dm3 |
| Maximum loading capacity: | 500 kg |
| Maximum charge in piling: | 2000 kg |
| Other info: | 4 feet 2 or 4 runners (optional) 4 wheels (optional) Lid (optional) Card Holder (optional) Ball valve (optional) Screw plug (Optional) |
Euro footprint with a folding door

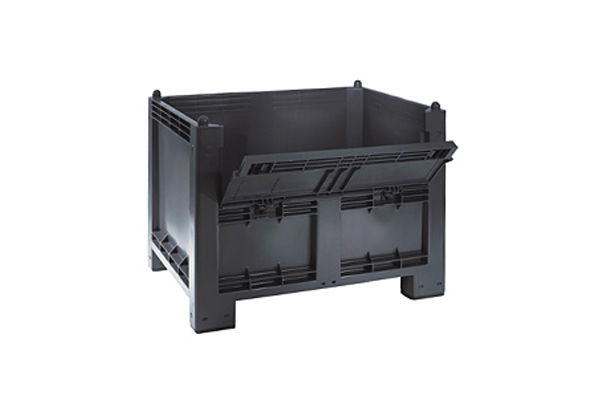

The Cargo 600 with a folding door: 1000 × 35 × 335 mm. 1200 × 800 × 850 mm external, 1130 × 725 × 690 mm internal, PP and RPP, grey.
Read the door dimensions
The door aperture is 1000 mm wide and 335 mm high — roughly half the internal depth. That tells you how it is meant to be used: you open the door to reach the lower half of the load once the top has been taken off, rather than emptying the whole container through it.
If you need to empty the container entirely through the side, check that 335 mm against your product and your method before ordering.
When a door is worth the compromise
An aperture is structurally weaker than a solid wall. It is worth it where staff empty the container by hand through a shift and would otherwise be reaching 690 mm down into it. It is not worth it where the container is tipped or emptied mechanically.
The range
Fixed wall: Cargo 600. On the UK footprint: Cargo 700FD. Smaller: Cargo 300.
Contact Beecraft with your unloading method.
Check the door opening before you order
The folding door measures 1000 × 35 × 335 mm. The container’s internal depth is 690 mm.
So the door gives access to roughly the lower half of the load, not the whole container. That is how it is meant to work — take the top off from above, then open the door to reach the rest — but if you were planning to empty the entire container through the side, 335 mm is the number to test against your product first.
The trade every door makes
An aperture is structurally weaker than a solid wall. Worth it where staff empty by hand through a shift; not worth it where the container is tipped or emptied mechanically. The fixed-wall Cargo 600 is the stronger, cheaper option in that case.
Euro footprint, PP
1200 × 800 × 850 mm external, 1130 × 725 × 690 mm internal, PP and recycled PP, grey. PP holds its shape under sustained load better than HDPE, which suits containers that sit loaded in storage.
The UK footprint version
Cargo 700FD on 1200 × 1000.
