Description

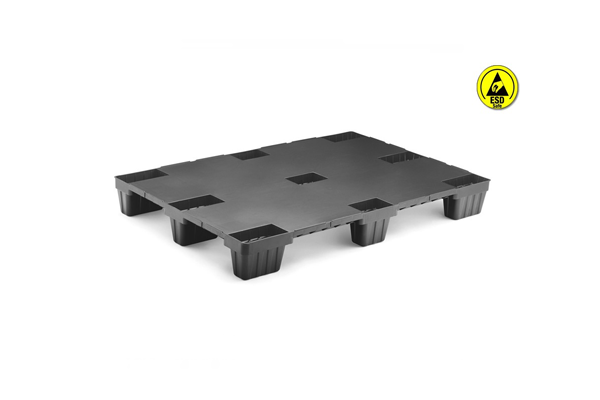

Euro pallet with a closed and plain surface, specially manufactured with electrically conductive materials for the transport of electrostatics sensitive components.
| Product code / Ref: | BC1208-C9 ESD |
| Size: | (L) 1200 mm (W) 800 mm (H) 140 mm |
| Weight: | 7.3 kg |
| Material: | rPP |
| Colour/s: | Black |
| Dynamic load: | 1000 kg |
| Static load: | 2000 kg |
Advantages
- Special strapping slot
- Anti-impact perimeter
- Corners prepared for optimum shrinkage
- Slow load loss due to plastics modified with additives
- Optimal supplement for conductive boxes
Options
- Silkscreen logo
- Engraved logo
- Customizable rims or without rims
- Tags / RFID
Recommendations for use
- Do not stack more than 90 pallets, which equates to a height of 4 m of empty pallets.
- Do not handle stacks of more than 40 empty pallets.
- Once stacked in height check that they are properly fitted.
Electrically conductive, for static-sensitive goods
A Euro pallet with a closed, plain surface, manufactured with electrically conductive materials for transporting electrostatically sensitive components.
What ESD material actually does
An ordinary plastic pallet is an insulator. Moving a load across it generates and holds static charge, and that charge discharges into whatever it next contacts — which, for electronic components, can mean damage you never see until the part fails in the field.
Conductive material gives the charge a path to ground instead of letting it accumulate. This is a functional property of the material, not a coating, so it does not wear off with use.
Closed, plain surface
The deck is closed and plain rather than open or ribbed. That suits small components and packaging that would catch or drop through an open deck, and it makes the pallet straightforward to wipe down in a controlled environment.
Where it is specified
Electronics manufacturing and distribution, semiconductor handling, assembly of any product containing static-sensitive parts. If your goods arrive in ESD bags, the pallet under them should not be undoing the point.
The nestable export version is the BC1208-O3 ESD. See the full ESD pallet range.
