Magic Box 800×1200

Magic Box 800×1200 – BCMP800

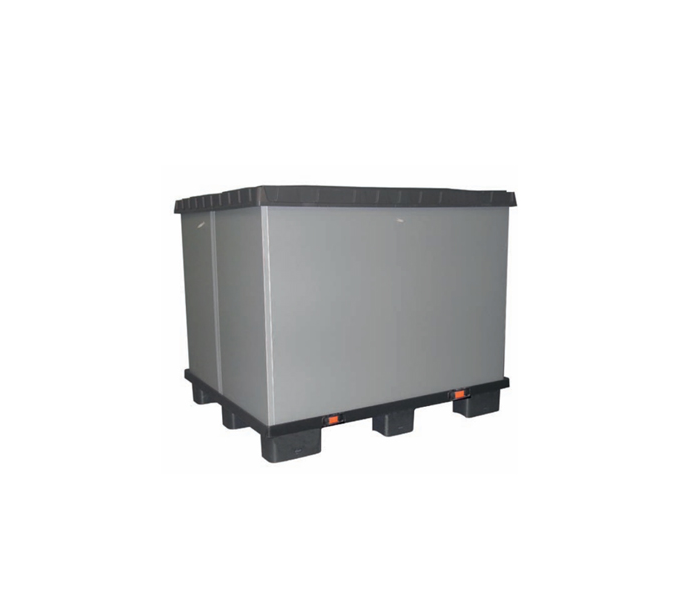

The Magic Box has the pallets of the range as its base. It is a packing solution with a long life, ideal to be used and reused within the industrial logistics and pharmaceutical field. It’s made of a pallet and a lid, injection molded in recycled polyolefins, and a folding sleeve in extruded PP.

Get a Quote

Description

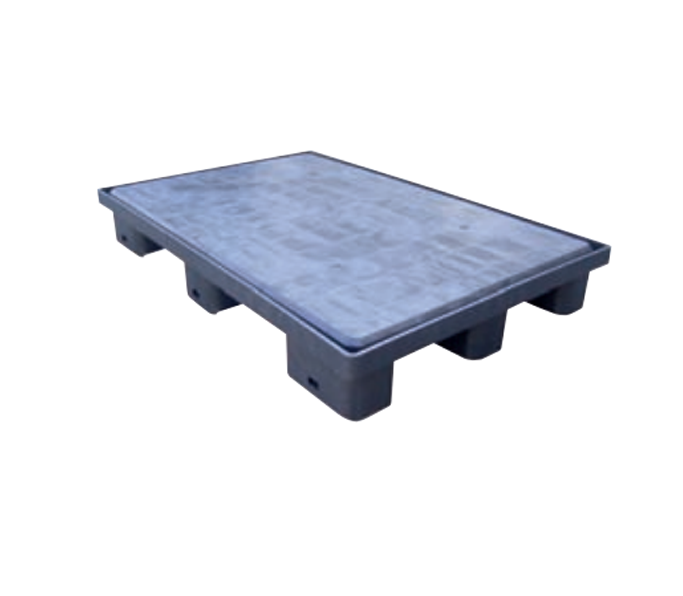

Pallet Spec or View full product spec PDF

Product code / Ref:	BCMP800
Size:	(L) 1200 mm (W) 800 mm (H) 153 mm
Weight:	13,4 kg
Material:	PP / HDPE
Colour/s:	Black
Dynamic load:	2,000Kg
Static load:	4,000 Kg
Pieces Per Pile:	17
Loading Capacity for 1 Full Truck (L. 13,6 – H. 2,7 m)	no. of pallet units = 33 no. of units = 561
Other info:	The pallet has a smooth completely closed top and a perimetrical groove for fitting the sleeve

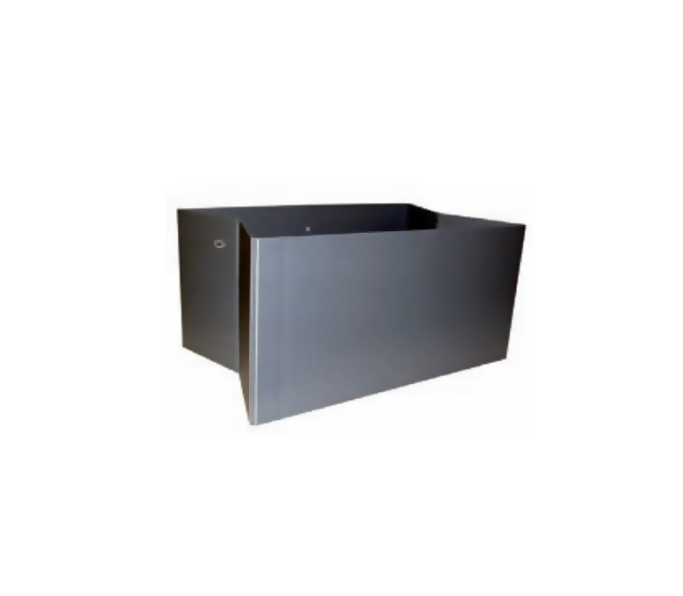

Perimitrical Sleeve Spec

Product code / Ref:	BCMS800
Base Pallet:	(L) 1200 mm (W) 800 mm (H) 153 mm
Internal Dimensions:	(L) 1144 mm (W) 744 mm

Belt height: by a minimum of 390 mm to a maximum of 1198 mm Usable height of box: 55 mm less than the height of the belt Thickness: 8,5 mm minimum to 10 mm maximum Density: minimum 2 to maximum 3kg/m2 Colour: grey RAL industrial 700, it may change on demand for a quantity of at least 1000 kg of plates

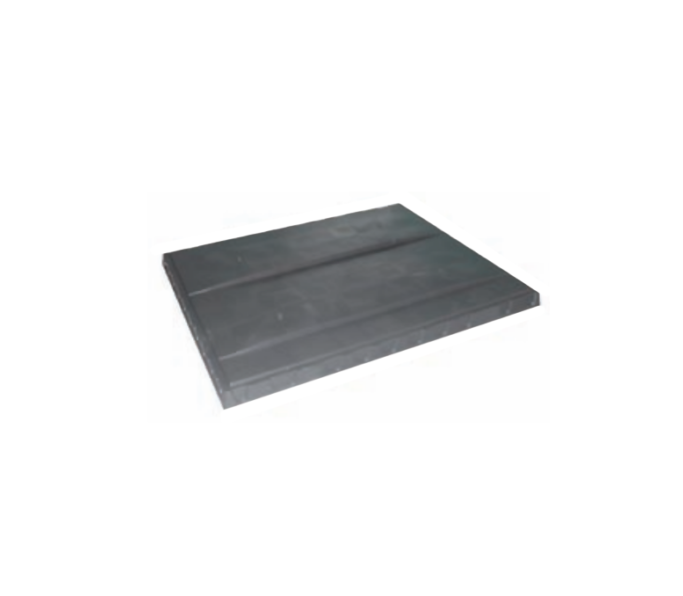

Lid Spec

Product code / Ref:	BCML850
Size:	(L) 1210 mm (W) 810 mm (H) 90 mm
Weight:	6,2 kg
Material:	PP
Colour/s:	Anthracite
Pieces Per Pile:	20

It is molded in recycled polyolefins, anthracite colour, and on request it can be produced in other thermoplastics and colours. It can be equipped with handles to facilitate the handling. These lids are not stackable.
