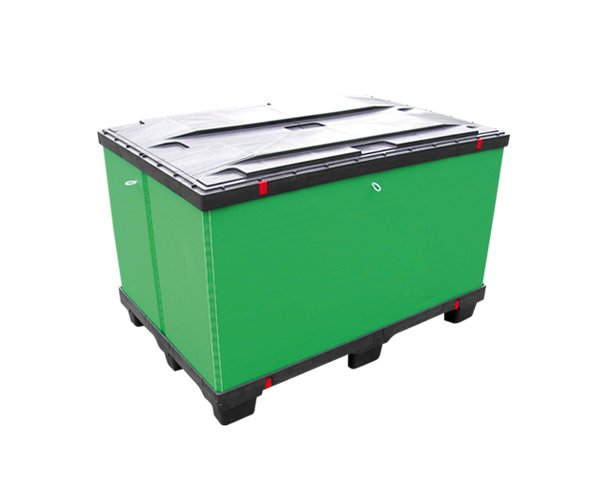

Lite Box 800×1200 – BCLP800

Categories: ,

Description

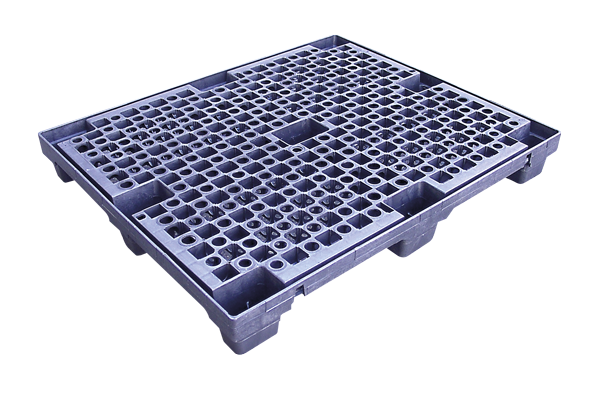

Pallet Spec or  View full product spec PDF

The pallet has a reticular structure with excellent mechanical characteristics and a perimetric groove for housing the sleeve.

Product code / Ref: BCLP800
Size: (L) 1200 mm   (W) 800 mm   (H) 133 mm
Weight: 12 kg
Material: PP
Colour/s: Black
Dynamic load: 1500 kg
Static load: 3000 kg
Racking load:  –
Perimetrical groove: Yes
Packing per stack: 34
Other info: Runners (optional)



Sleeve spec

Made with a rimmed contour to prevent injuries and on request can be fitted to the pallet and the lid with 8 hooks.

Product code / Ref: BCLS0800
Size: (L) 1200 mm   (W) 800 mm
Internal dimensions: (L) 1163 mm (W) 763 mm
Belt height: Minimum 390 mm / maximum 1198 mm
Thickness: From minimum 5mm to maximum 10 mm
Thickness: Minimum 8.5 mm / maximum 10 mm
Density: Minimum 1.5kg/m2 to maximum 3kg/m2
Material: PP
Colour: On demand according to quantities (minimum 1000kg)
Other info: Foldable door on one or two sides (optional)
Option to fix belt to pallet and lid with 8 hooks
Rimmed contour
Foldable

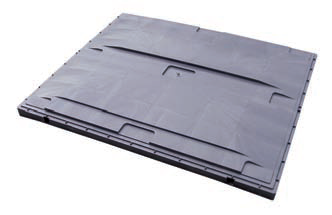

Lid spec

The upper part of the lid is made with a special structure to allow the stacking of the boxes.

Product code / Ref: BCLL0850
Size: (L) 1200 mm   (W) 800 mm
Weight: 7.15 kg
Material: PP
Colour/s: Anthracite grey
Other info: Upper part of lid made with special structure to allow stacking of boxes
Pull rings (optional)
